Code EK000335

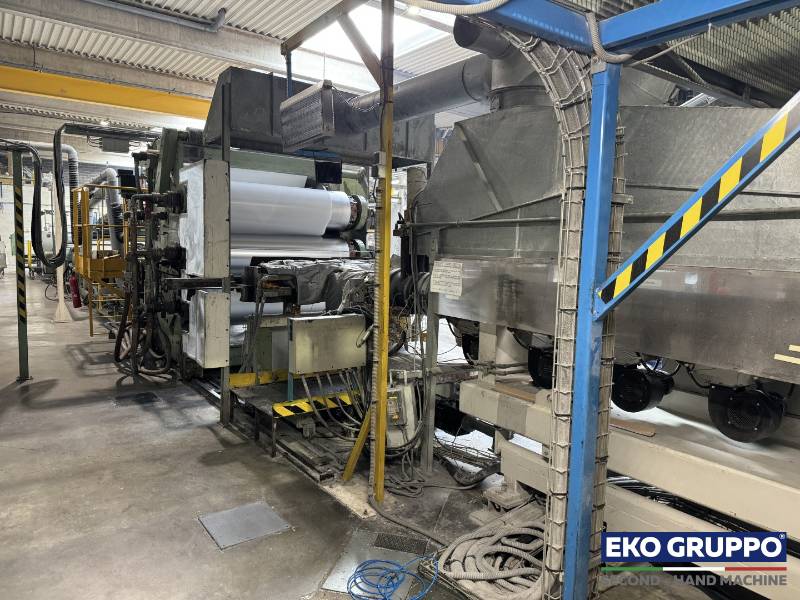

1900 mm SML Sheet Extrusion Film Line
SML
SHEET EXTRUSION MACHINES
The 1900 mm SML Sheet Extrusion Film Line allow to produce foils and sheets in every kind of plastic material. This second-hand Sheet Extrusion Film Machine SML 1900 model gives to customers versatile sheets film production capability with a film width of 1.900 mm and an output rate of up to 400 kg/h.
The change of the rollers is very rapid.
Manufacturer
SML
Year of construction
2004
Number of layers
2/3
Raw material
PE
Film width
1.900 mm
Condition
Second-hand Machine
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | 120 SML | ||
MATERIALS | PE | ||
FILM WIDTH (MAX) | 1.900 mm | ||
NUMBER OF EXTRUDERS | 1 | ||
NET OUTPUT (MAX) | 400 Kg/h | ||
DIE | 1.650 mm | ||
NUMBER OF LAYERS | 2/3 | ||
CALENDAR | OMAM 1.900 mm | ||

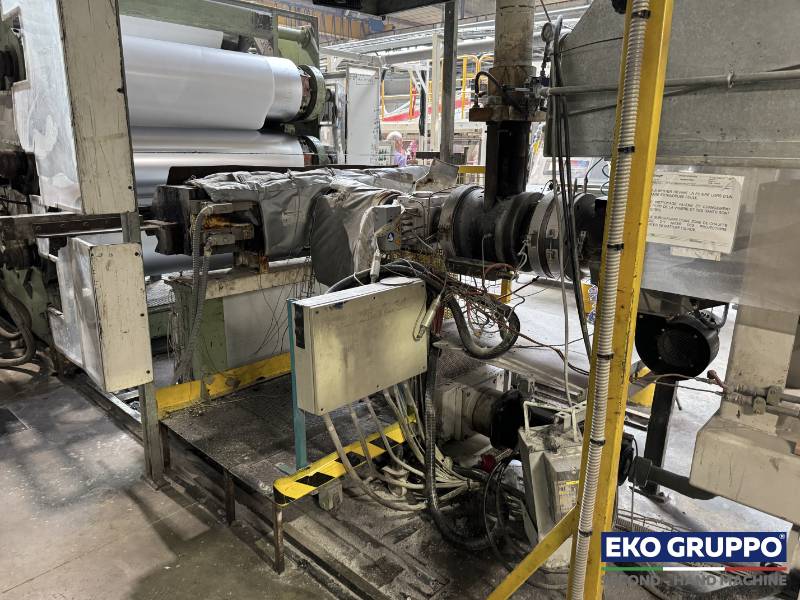

MAIN EXTRUDER SCREW DIAMETER | 120 mm 30 L/D Single Screw SML Extruder | ||
THICKNESS RANGE | from 200 µm to 800 µm | ||
Sheet Extrusion Machines
The sheet extrusion is a common process to extrude plastic sheets or films that are too thick to be blown. In Particular, plastic granules including additives, are fed from the extruder hopper along a heated cylinder by a rotating screw, melted & homogenized and conveyed to the sheet die.
There are two types of dies used: T-shaped and coat hanger. The purpose of these dies is to reorient and guide the flow of polymer melt from a single round output from the extruder to a thin, flat planar flow.

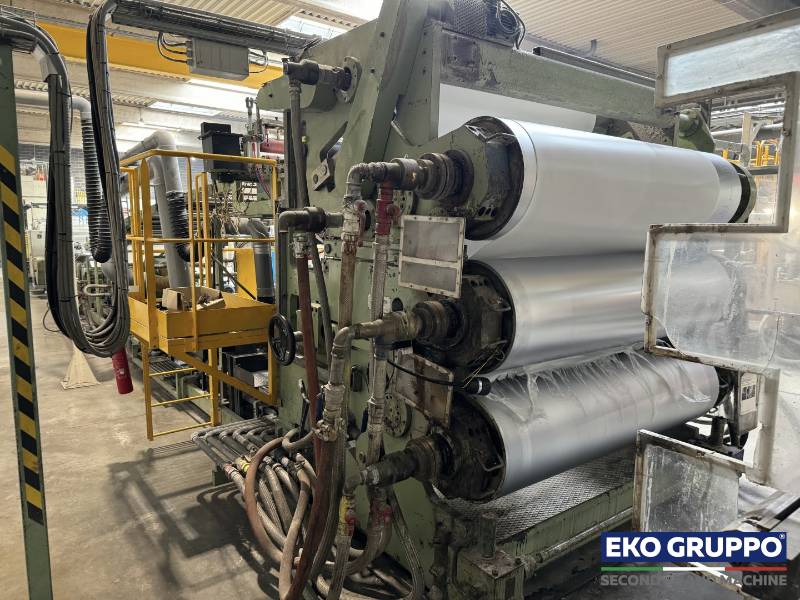

Depending on the application, there are a number of variations including the number and rotation of the screws, the screw and cylinder geometry and the structure. The die itself can be fed by several extruders extruding different thermoplastics, resulting in layered or concentric co-extrudates. The extrudate is then cooled via chill rolls and transported to slitting and winding stations.In sheet extrusion, these cooling rolls not only deliver the necessary cooling but also determine sheet thickness and surface texture.
Main Applications:
Printing and Converting
Food Packaging
Waterproofing
