Code EK000345
1600 mm Bettenfeld Gloenco Sheet Extrusion Film Line
BATTENFELD GLOENCO
SHEET EXTRUSION MACHINES

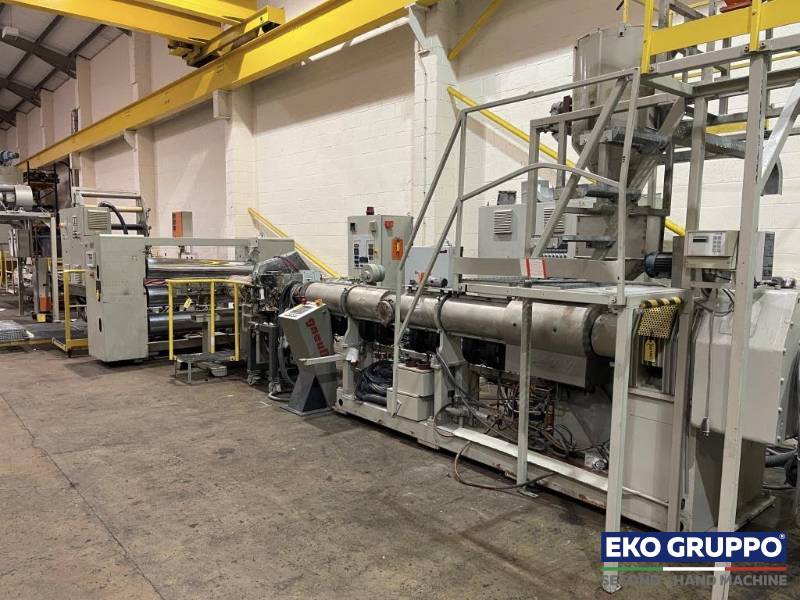

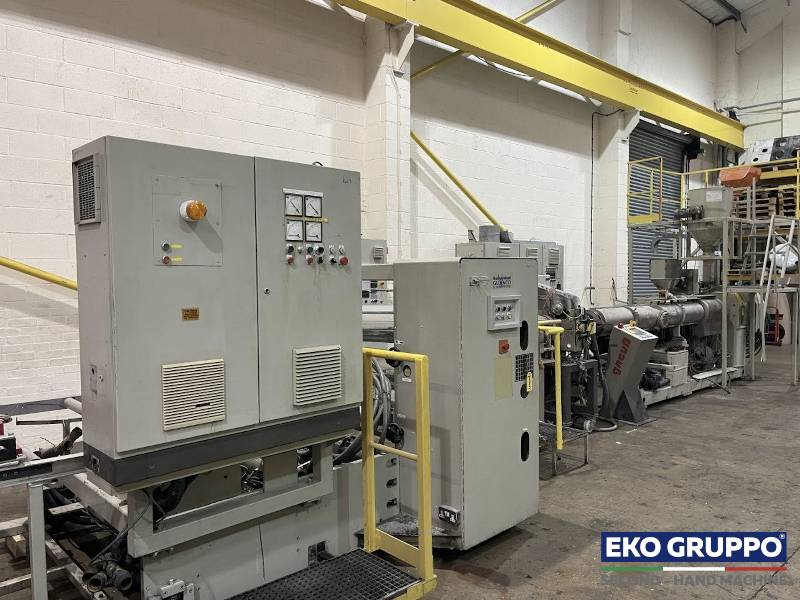

The 1600 mm Battenfeld Gloenco Sheet Extrusion Film Line allow to produce foils and sheets in every kind of plastic material. This second-hand Sheet Extrusion Film Machine Battenfeld Gloenco 1600 model gives to customers versatile sheets film production capability with a film width of 1.600 mm and an output rate of up to 400 kg/h.
The change of the rollers is very rapid.
Manufacturer
Battenfeld
Year of construction
2005
Number of layers
2/3
Raw material
PS
Film width
1.600 mm
Condition
Second-hand Machine
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | Gloenco 3 Roll | ||
MATERIALS | PS | ||
FILM WIDTH (MAX) | 1.600 mm | ||
NUMBER OF EXTRUDERS | 1 | ||
NET OUTPUT (MAX) | 400 Kg/h | ||

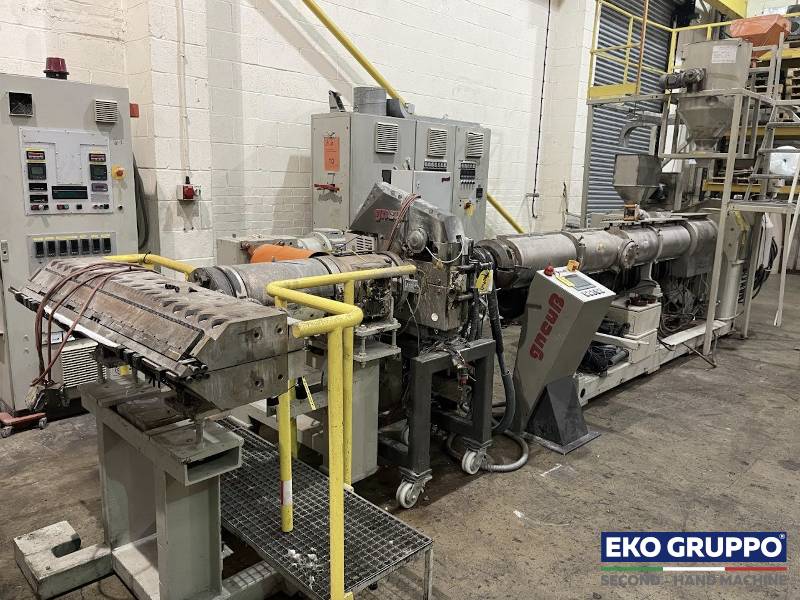

DIE | 1.400 mm | ||
NUMBER OF LAYERS | 1/2 | ||
FLEX LIP | EDI HR75 1.300 mm | ||

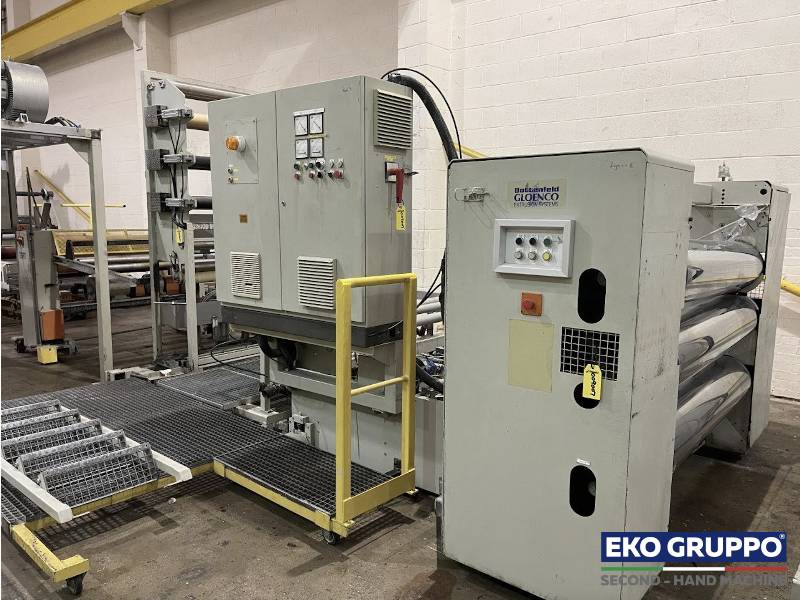

ROLL POLISHING STACK | 1.600 mm | ||
PRIMARY SINGLE SCREW DIAMETER | 120 mm Battenfeld | ||
ROLL HAUL OFF | Battenfeld 2 Roll - 1.350 mm | ||
Sheet Extrusion Machines
The sheet extrusion is a common process to extrude plastic sheets or films that are too thick to be blown. In Particular, plastic granules including additives, are fed from the extruder hopper along a heated cylinder by a rotating screw, melted & homogenized and conveyed to the sheet die.
There are two types of dies used: T-shaped and coat hanger. The purpose of these dies is to reorient and guide the flow of polymer melt from a single round output from the extruder to a thin, flat planar flow.
Depending on the application, there are a number of variations including the number and rotation of the screws, the screw and cylinder geometry and the structure. The die itself can be fed by several extruders extruding different thermoplastics, resulting in layered or concentric co-extrudates. The extrudate is then cooled via chill rolls and transported to slitting and winding stations.In sheet extrusion, these cooling rolls not only deliver the necessary cooling but also determine sheet thickness and surface texture.
Main Applications:
Printing and Converting
Food Packaging
Waterproofing
