Code EK000344

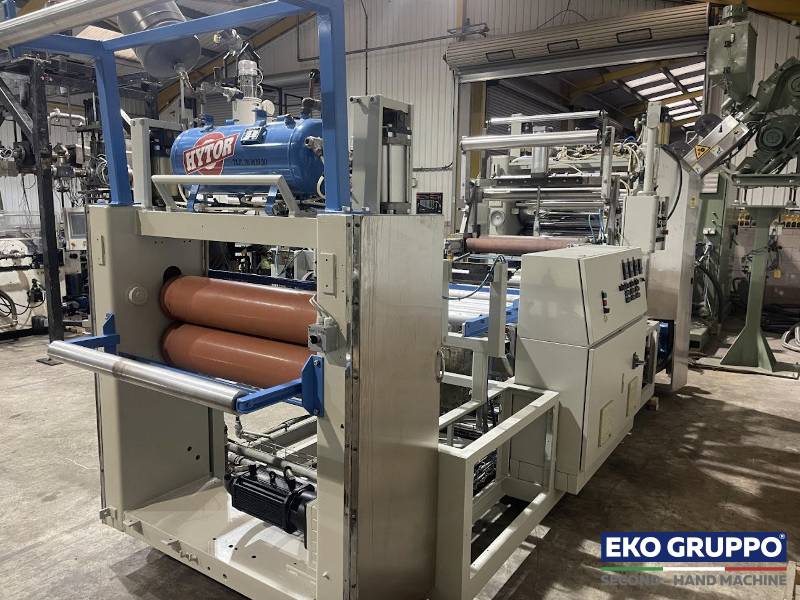

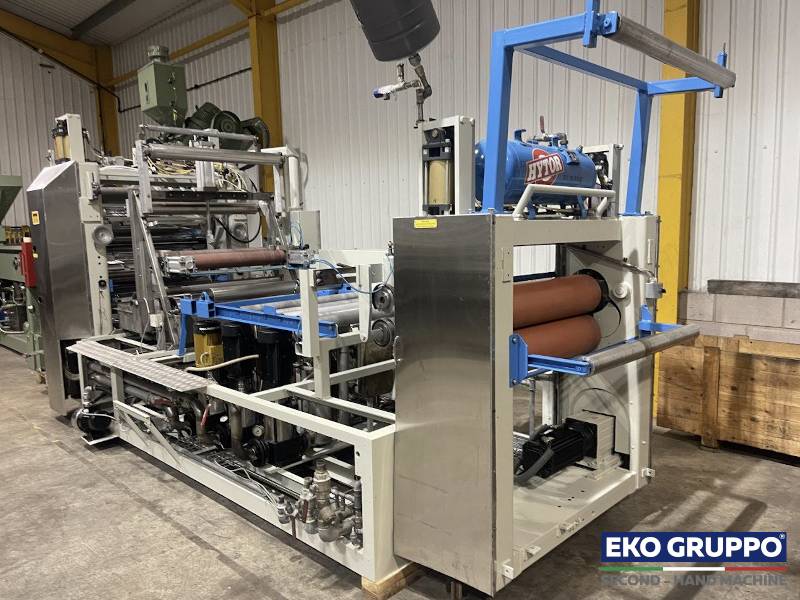

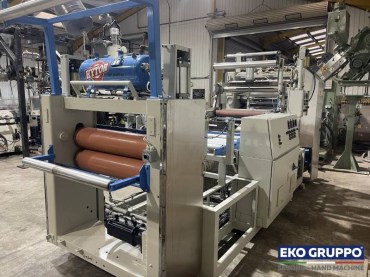

1040 mm Welex Sheet Extrusion Film Line
WELEX
SHEET EXTRUSION MACHINES
The 1040 mm Welex Sheet Extrusion Film Line allow to produce foils and sheets in every kind of plastic material. This second-hand Sheet Extrusion Film Machine Welex 1040 model gives to customers versatile sheets film production capability with a film width of 1.040 mm and an output rate of up to 200 kg/h.
The change of the rollers is very rapid.
Manufacturer
Welex
Year of construction
2005
Number of layers
2/3
Raw material
PS
Film width
1.040 mm
Condition
Second-hand Machine
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | Welex 3 Roll | ||
MATERIALS | PS | ||
FILM WIDTH (MAX) | 1.040 mm | ||
NUMBER OF EXTRUDERS | 1 | ||
NET OUTPUT (MAX) | 200 Kg/h | ||
DIE | 450 mm | ||
NUMBER OF LAYERS | 1/2 | ||
MAX LINE SPEED | 60 mt/min | ||
MAX ROLL WEIGHT | 500 Kg | ||

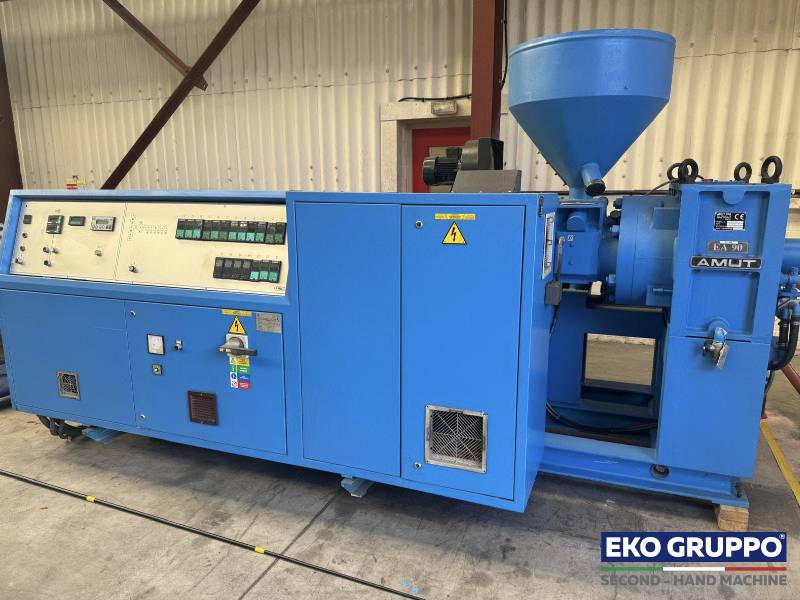

PRIMARY SINGLE SCREW DIAMETER | 90 mm | ||
ROLL HAUL OFF | 2 | ||
ROLL DIAMETER (MAX) | 1.000 mm | ||
Sheet Extrusion Machines
The sheet extrusion is a common process to extrude plastic sheets or films that are too thick to be blown. In Particular, plastic granules including additives, are fed from the extruder hopper along a heated cylinder by a rotating screw, melted & homogenized and conveyed to the sheet die.
There are two types of dies used: T-shaped and coat hanger. The purpose of these dies is to reorient and guide the flow of polymer melt from a single round output from the extruder to a thin, flat planar flow.
Depending on the application, there are a number of variations including the number and rotation of the screws, the screw and cylinder geometry and the structure. The die itself can be fed by several extruders extruding different thermoplastics, resulting in layered or concentric co-extrudates. The extrudate is then cooled via chill rolls and transported to slitting and winding stations.In sheet extrusion, these cooling rolls not only deliver the necessary cooling but also determine sheet thickness and surface texture.
Main Applications:
Printing and Converting
Food Packaging
Waterproofing
