Code EK000326
5500 mm Bruckner Toshiba BOPET Film Extrusion Line
BRUCKNER TOSHIBA
BOPP BOPET PACKAGING FILM EXTRUSION LINES

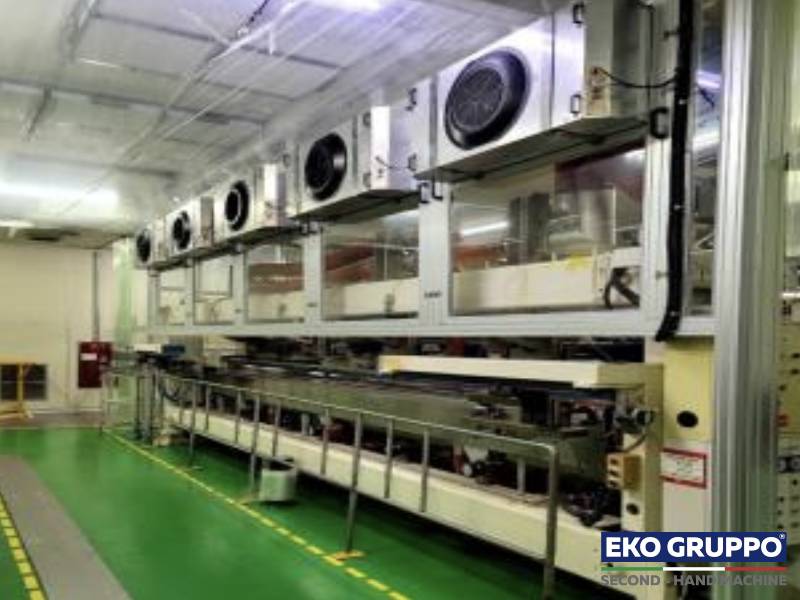

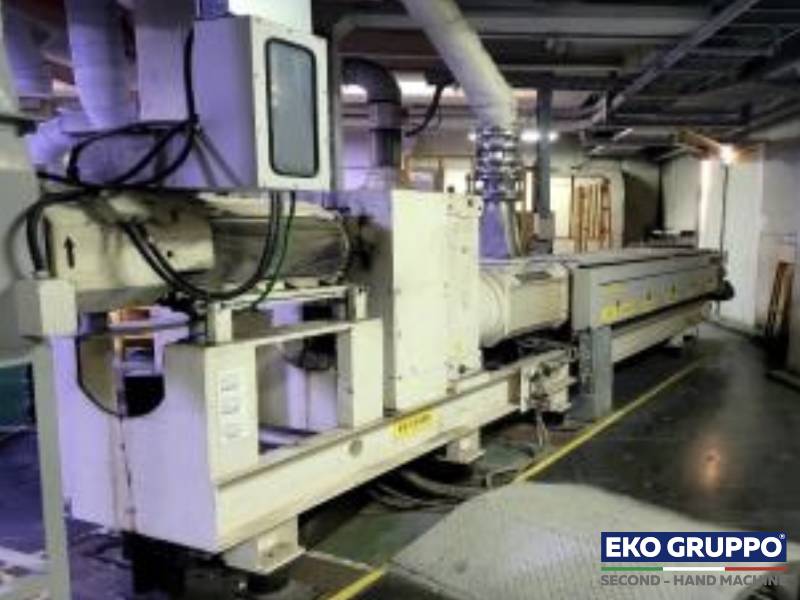

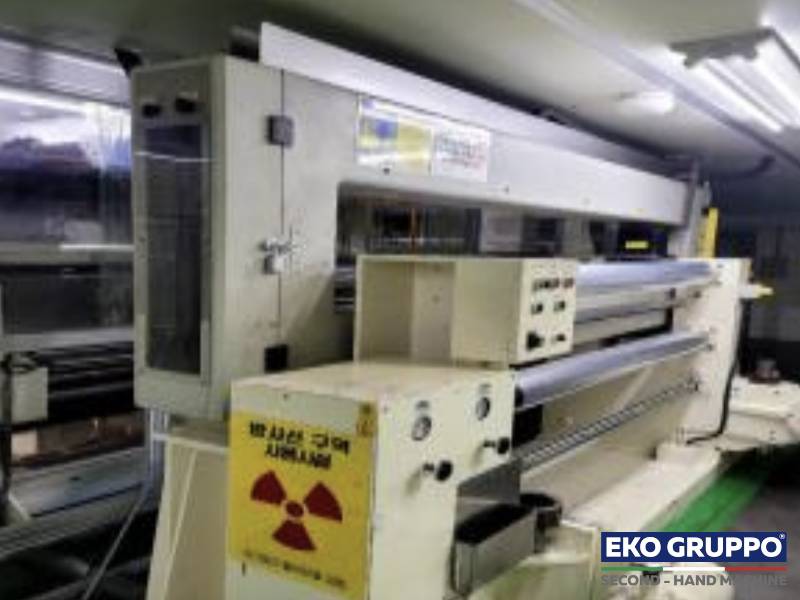

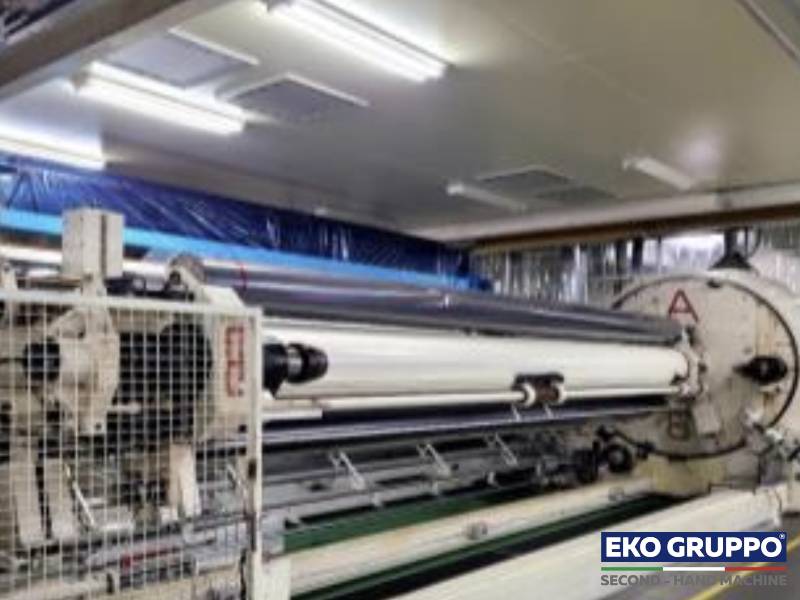

This BOPET film extrusion line produced by Bruckner Toshiba is used for the production of many BOPET film types for a wide variety of applications. Bruckner Toshiba has developed high output lines for top quality film production.
This Second-hand Bruckner Toshiba BOPET film machine allow a range up to 2.500 kg/h and a film width of 5.500 mm.
Manufacturer
Bruckner Toshiba
Year of construction
1987
Number of layers
Raw material
BOPET Film
Film width
5.500 mm
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | BOPET/Bruckner-Toshiba | ||
MATERIALS | BOPET | ||
FILM WIDTH (MAX) | 5.500 mm | ||
THICKNESS RANGE | from 6 µm to 50 µm | ||
DIE WIDTH | EDI 1.700 mm | ||
NET OUTPUT (MAX) | 2.500 Kg/h | ||
FILM STRUCTURE | ABA | ||
MAX MECHANICAL SPEED | 300 mt/min | ||
CHILL ROLL DIAMETER | 2.000 mm | ||
ROLL WIDTH (MAX) | 1.900 mm | ||
BOPP/BOPET Extrusion Lines
BOPP (Biaxially oriented polypropylene) and BOPET (Biaxially oriented polyester) films are the most common supports used in the food packaging and printing. BOPET is more stable through printing and laminating processes than BOPP and is often preferred where high-quality graphics are required.
These plastic films are produced in tender-frame lines where the material (PP or PET) is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. The material is then stretched in the machine direction in an MDO and then in the transverse direction in a TDO. Solid-phase orientation processes create very significant changes in film properties that can be quite valuable in packaging structures. These changes permit films that are lighter weight and thinner than standard blown or cast films to satisfy performance needs by generating significant increases in such properties as tensile strength, toughness, heat stability, tear initiation resistance, and barrier.
Both BOPP and PET films can be produced in a variety of thicknesses, making them suitable for different types of packaging applications. Various types of finishes, such as matte, glossy and metallic, are also achievable, allowing manufacturers to create packaging with different textures and visual effects. With the growing demand for individual packaging, BOPP and PET films are likely to remain popular choices for manufacturers looking to create high-quality custom packaging that protects their products and enhances their brand image.
