Code EK000328

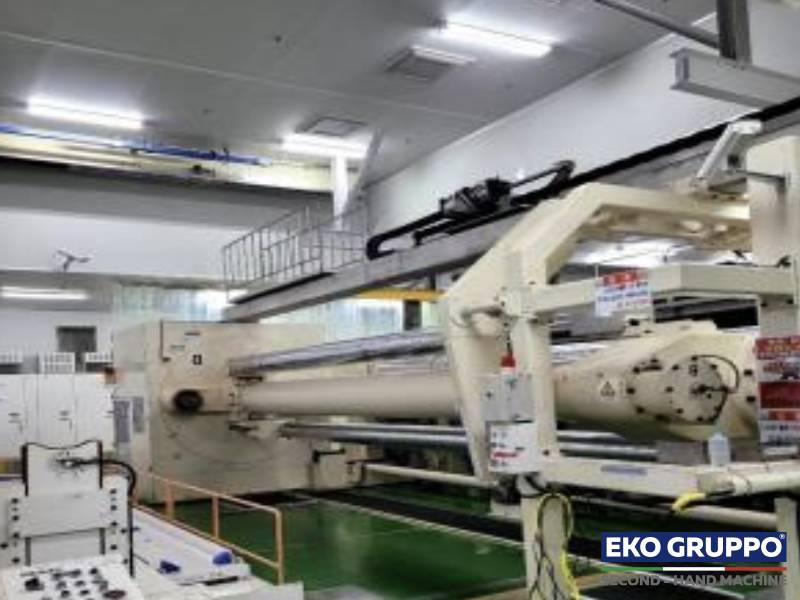

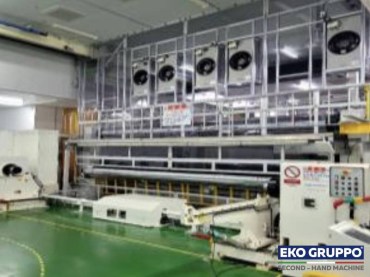

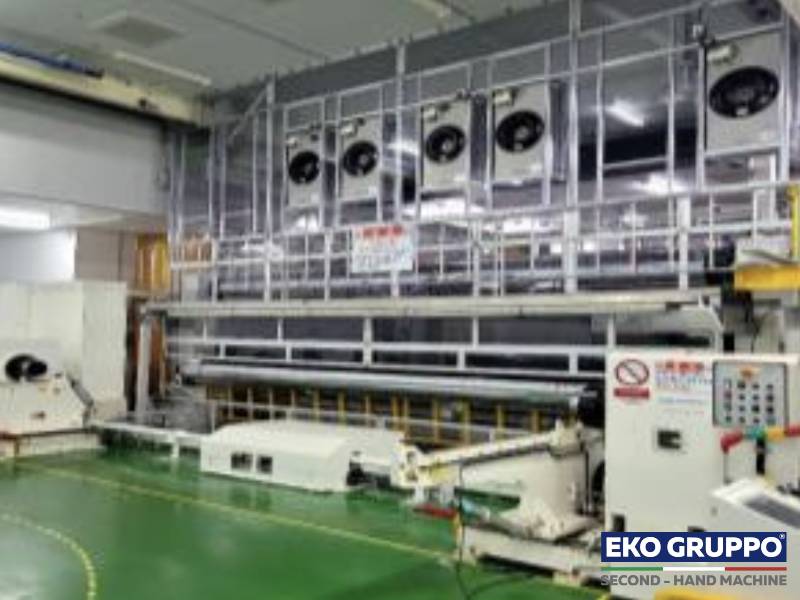

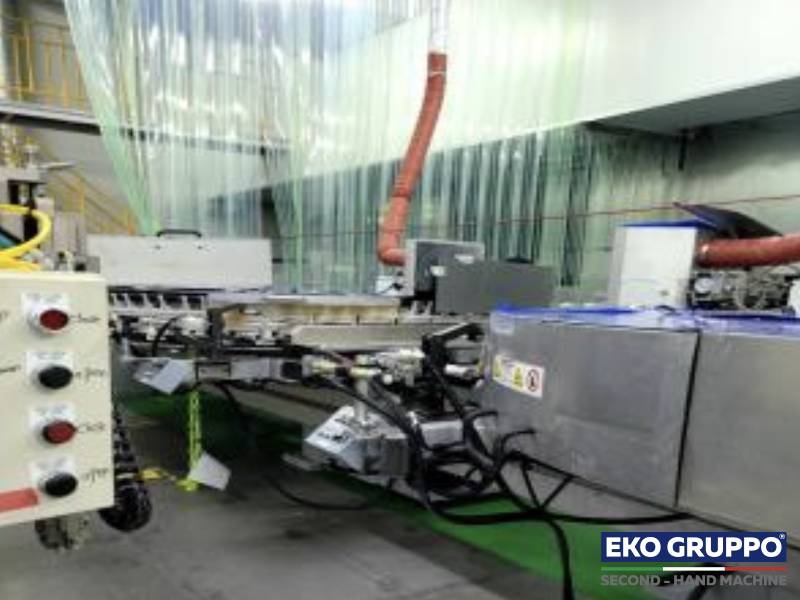

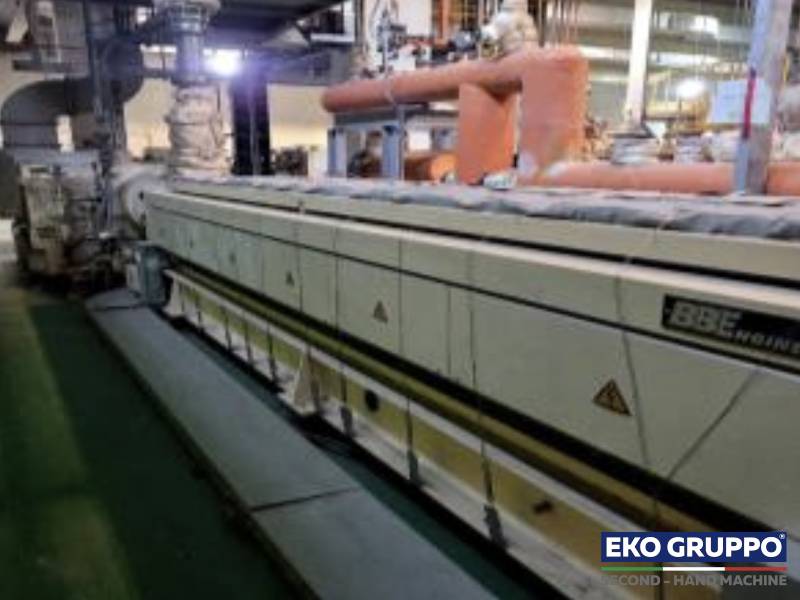

2012 Dornier Toshiba 5400 mm BOPET Film Extrusion Line
DORNIER TOSHIBA
BOPP BOPET PACKAGING FILM EXTRUSION LINES
This BOPET film extrusion line produced by Dornier Toshiba is used for the production of many BOPET film types for a wide variety of applications. Dornier Toshiba has developed high output lines for top quality film production.
This Second-hand Dornier Toshiba BOPET film machine allow a range up to 3.000 kg/h and a film width of 5.400 mm.
Manufacturer
Dornier Toshiba
Year of construction
2012
Number of layers
Raw material
BOPET Film
Film width
5.400 mm
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | BOPET/Dornier-Toshiba | ||
MATERIALS | BOPET | ||
FILM WIDTH (MAX) | 5.400 mm | ||
THICKNESS RANGE | from 50 µm to 350 µm | ||
DIE WIDTH | EDI 1.800 mm | ||
NET OUTPUT (MAX) | 3.000 Kg/h | ||
FILM STRUCTURE | ABA | ||
MAX MECHANICAL SPEED | 200 mt/min | ||
ROLL WIDTH (MAX) | 2.100 mm | ||
BOPP/BOPET Extrusion Lines
BOPP (Biaxially oriented polypropylene) and BOPET (Biaxially oriented polyester) films are the most common supports used in the food packaging and printing. BOPET is more stable through printing and laminating processes than BOPP and is often preferred where high-quality graphics are required.
These plastic films are produced in tender-frame lines where the material (PP or PET) is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. The material is then stretched in the machine direction in an MDO and then in the transverse direction in a TDO. Solid-phase orientation processes create very significant changes in film properties that can be quite valuable in packaging structures. These changes permit films that are lighter weight and thinner than standard blown or cast films to satisfy performance needs by generating significant increases in such properties as tensile strength, toughness, heat stability, tear initiation resistance, and barrier.
Both BOPP and PET films can be produced in a variety of thicknesses, making them suitable for different types of packaging applications. Various types of finishes, such as matte, glossy and metallic, are also achievable, allowing manufacturers to create packaging with different textures and visual effects. With the growing demand for individual packaging, BOPP and PET films are likely to remain popular choices for manufacturers looking to create high-quality custom packaging that protects their products and enhances their brand image.
