Code EK000338

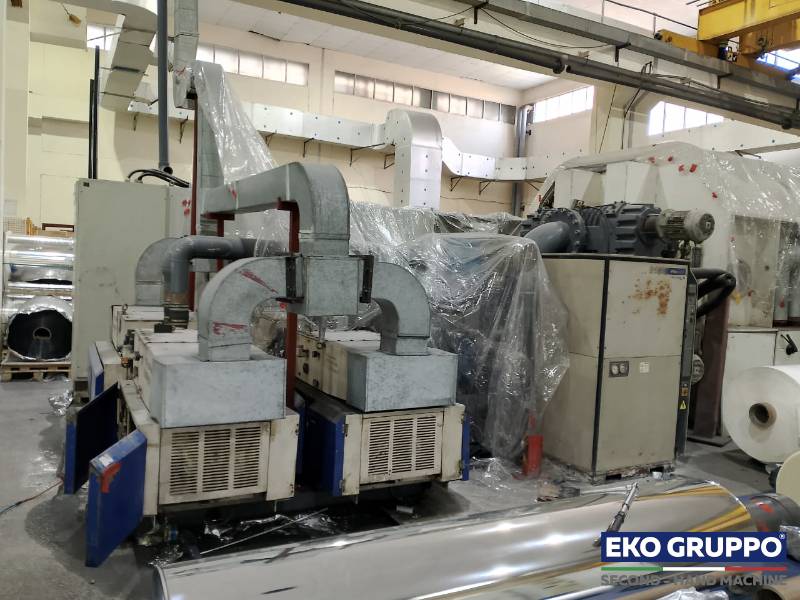

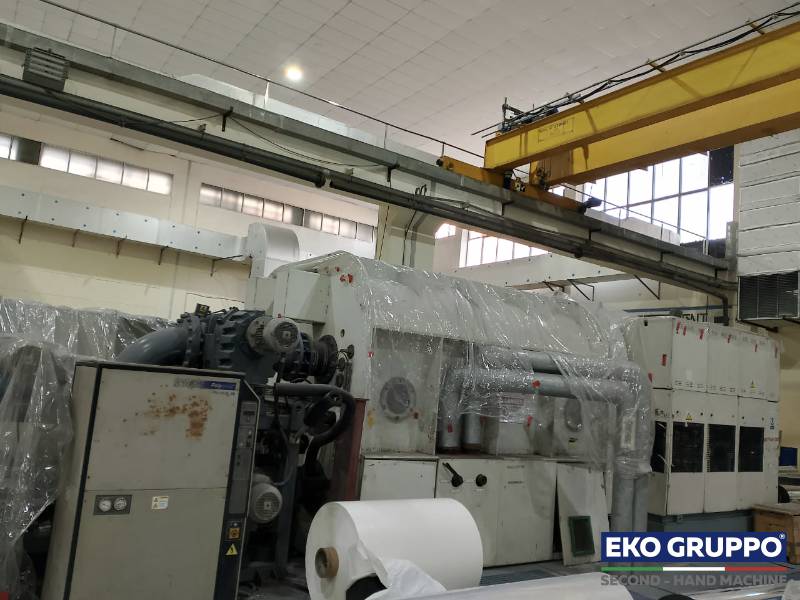

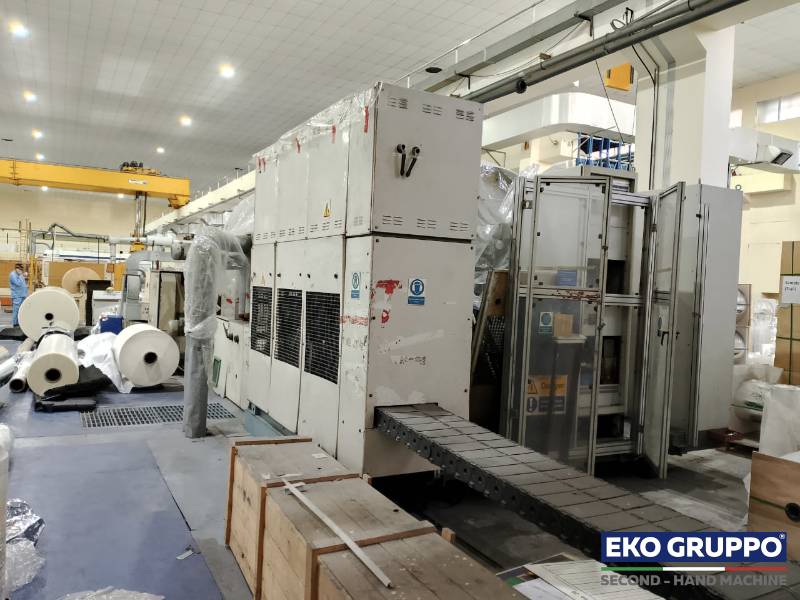

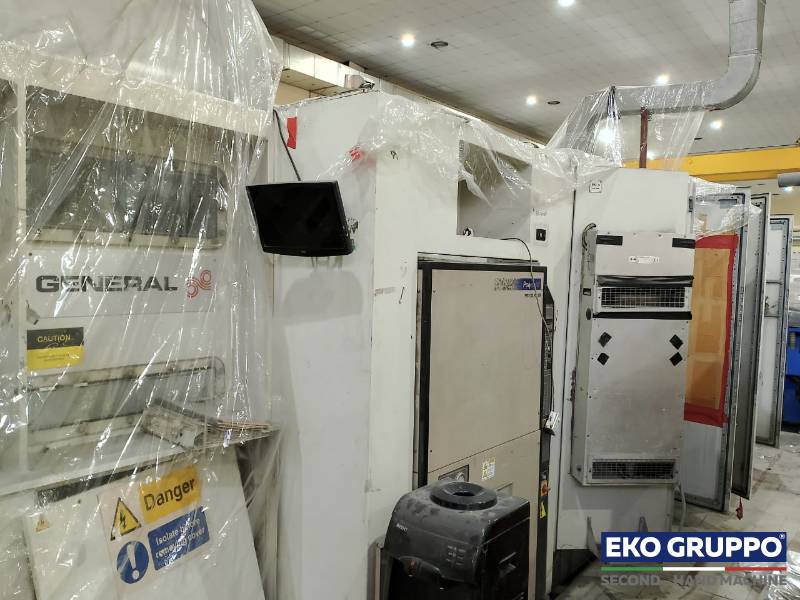

K4000 General Vacuum 2450 Metallizer
GENERAL VACUUM EQUIPMENT
FILM CONVERTING MACHINES
This K4000 model Metallizer is designed by General Vacuum Equipment for wide web processing, and characterized by minimal downtime and superb quality at high speeds, which is why K4000 is noted as one of the best premier supplier of vacuum coating and metallizing solutions for barrier, decorative, security and high technology applications for flexible packaging. The K4000 2450 allow a speed range up to 840 m/min and a film width of 2.450 mm.
Manufacturer
General Vacuum Equipment
Year of construction
2005
Model
K4000
Raw material
BOPP, CPP, PET, LDPE, Nylon
Film width
2.450 mm
Condition
Second-hand machine
Technical Data | |||
|---|---|---|---|
REFERENCE MACHINE | K4000 | ||
MATERIALS | BOPP, CPP, PET, LDPE, Nylon | ||
FILM WIDTH (MIN) | 1.250 mm | ||
FILM WIDTH (MAX) | 2.450 mm | ||
FILM THICKNESS RANGE | from 10 μm to 50 μm (BOPP) from 20 μm to 40 μm (CPP) from 5 μm to 50 μm (PET) from 25 μm to 50 μm (LDPE) from 12 μm to 50 μm (Nylon) | ||
BOAT NUMBER | 26 | ||
SPEED | 840 m/min | ||
MAX DIAMETER REEL REWINDER | 1.000 mm | ||
CORE SIZE | 152 | ||
Film Metallizer Machines
Metallized films are films created by coating a polymer film with a thin layer of metal, usually aluminum. The film retains some of its original properties, such as toughness and low density, while gaining additional features like reduced permeability to external factors.
Metallization is achieved through a physical vapor deposition process. The metal is heated and evaporated within a vacuum. It then condenses onto the cold polymer film, which is unwound close to the source of metal vapor. The most common films used for metallization are oriented polypropylene and polyethylene terephthalate (PET), although nylon, polyethylene, and cast polypropylene are also used.
Metallized films find application in decorative purposes, food packaging, as well as specialty functions such as insulation and electronics.
