Code EK000308
5 Layers 2500 COEX Air Bubble Wrap Film Line
ZTECH
AIR BUBBLE FILM EXTRUSION MACHINES
Ztech Coex air bubble wrap film line processes LDPE pellets to produce a wide range of excellent-quality air bubble films at moderate outputs.
With its simplified structure and no-frills finishing, the Ztech plant is a suitable solution for medium-to-small market necessities.
Manufacturer
Ztech
Year of construction
2020
Number of layers
5
Raw material
LDPE pellets
Film width
2.500 mm
Condition
Second-hand machinery

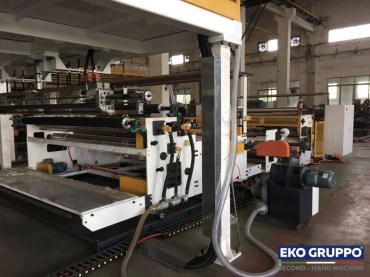

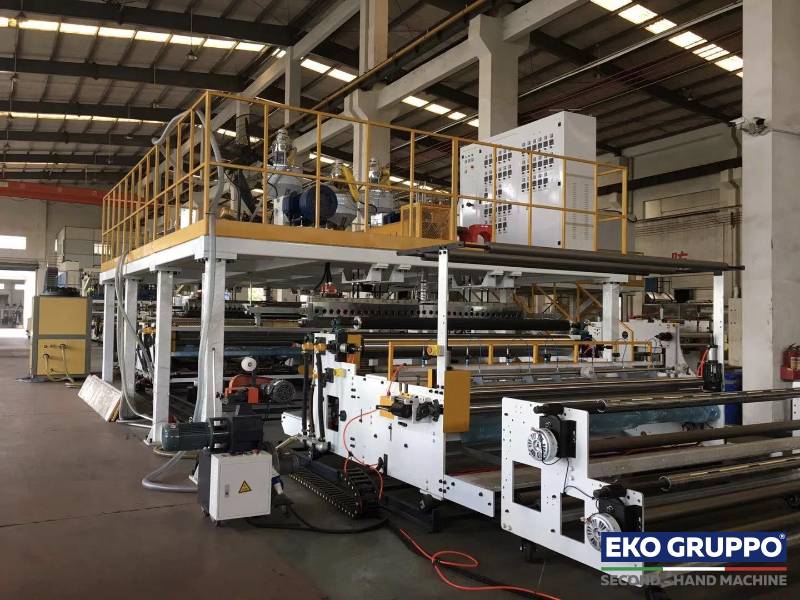

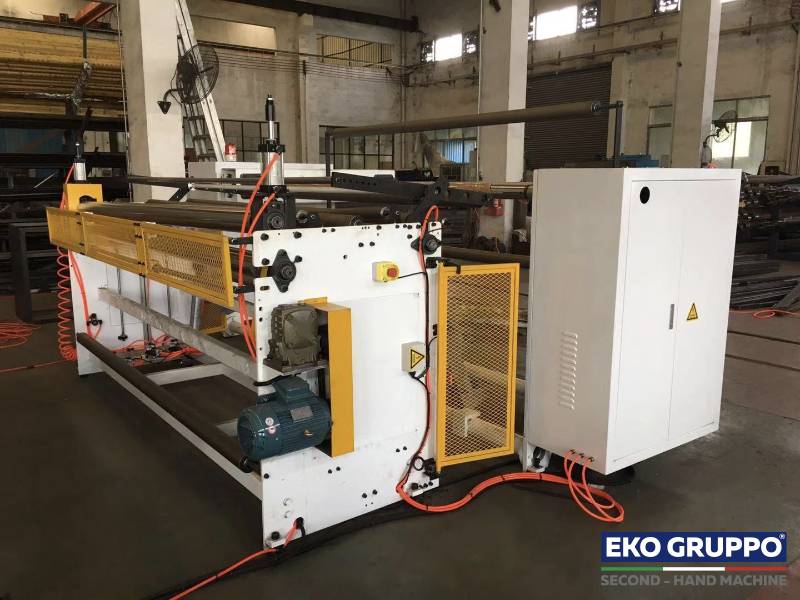

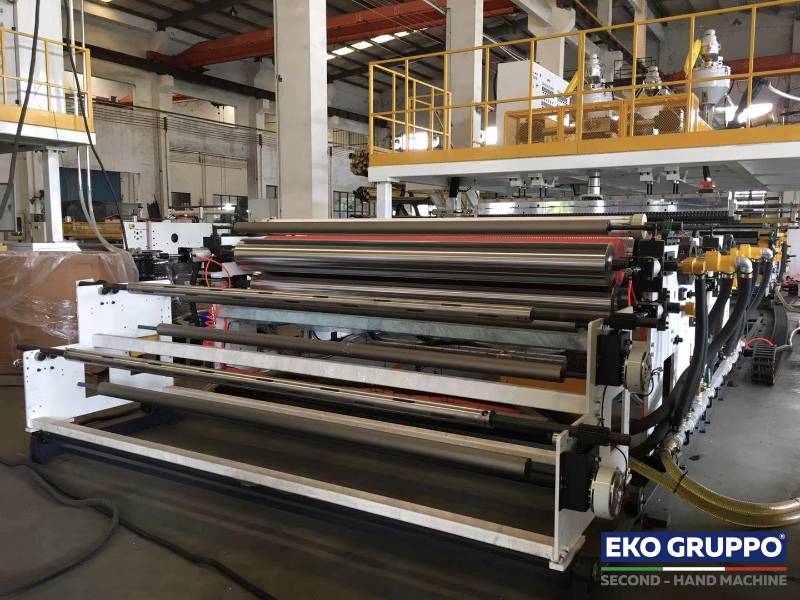

ZTECH Air Bubble wrap film line
Ztech, in-line COEX extruder for bubble film production
The ZTECH production process of air bubble wrap film (Air bubble film packaging, Reflective bubble foil insulation, Bubble solar pool cover) is completely automatic and fully controllable by a single, un-skilled operator.
This machinery allows a new bracket of customers (e.g. air bubble film distributors and converters) to enter and learn the production market while substantially containing their up-front investment costs.
This used plant is also ideal for air bubble film manufacturers intending to relocate production facilities directly in distant, but profitable, new markets, while drastically reducing transport costs and amortizing, in the short-term, the initial investment.
Technical data | |||
|---|---|---|---|
REFERENCE MACHINE | COEX Bubble 2,5 m / FIVE layers | ||
STARTING STANDARD MATERIAL | pellets of LDPE and LLDPE, mLLDPE | ||
OUTPUT (MAX) | 300 Kg/h | ||
FILM LAYERS | 5 | ||
NET FINISHED AIR BUBBLE FILM WIDTH | 2.500 mm | ||
THERMOFORMING PROCESS | With cast extruders | ||
FINISHED AIR BUBBLE FILM WEIGHT | Min 30 g/m2 - max 300 g/m2 | ||
FORMING ROLLER DIAMETER | Ø 365 mm | ||
MAX PRODUCTION SPEED | 40 mt/min | ||
DIAMETER OF REWINDING ROLL (MAX) | 1.000 mm | ||
